Commercial heat pumps
Panasonic
The Panasonic commercial pump system is particularly suitable for common areas. It reduces the concentration of noise and allows the same temperature to be achieved throughout the space.

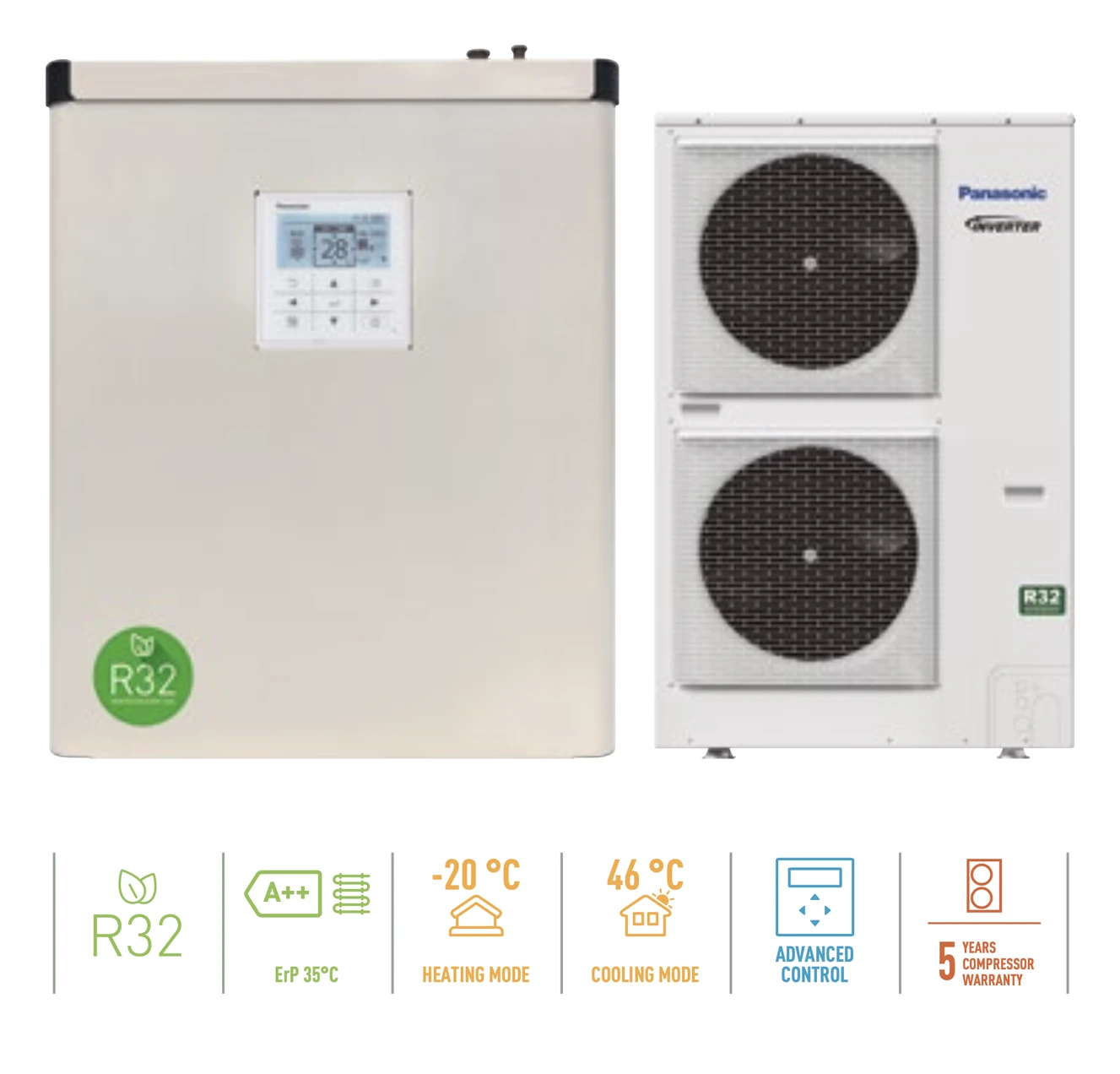

PACi with water heat exchanger for chilled and hot water production
There is a constant flow of 55 °C.
Short-term renewal of investments
The PACi water heat exchanger is ideal for small offices and retail stores. The investment cost can be amortised in a very short time. This solution allows investors and operators to save money.
Professional solution
The water heat exchanger is compatible with R32 PACi. Many air conditioner manufacturers are selling systems with R32 refrigerant and this refrigerant is becoming the standard refrigerant for split air conditioners because R32 has a much lower global warming potential than R410A and can also provide higher efficiency.
Quick installation with pre-assembled flow switch
The flow switches are supplied pre-assembled with piping accessories for easy installation. Operation down to -20 °C without glycol, as the heat exchanger is installed indoors.
Technical Data SheetThe PACi water heat exchanger can be cascaded with up to 4 groups of 8 units with an output of up to 600 kW
Quick installation with pre-assembled flow switch

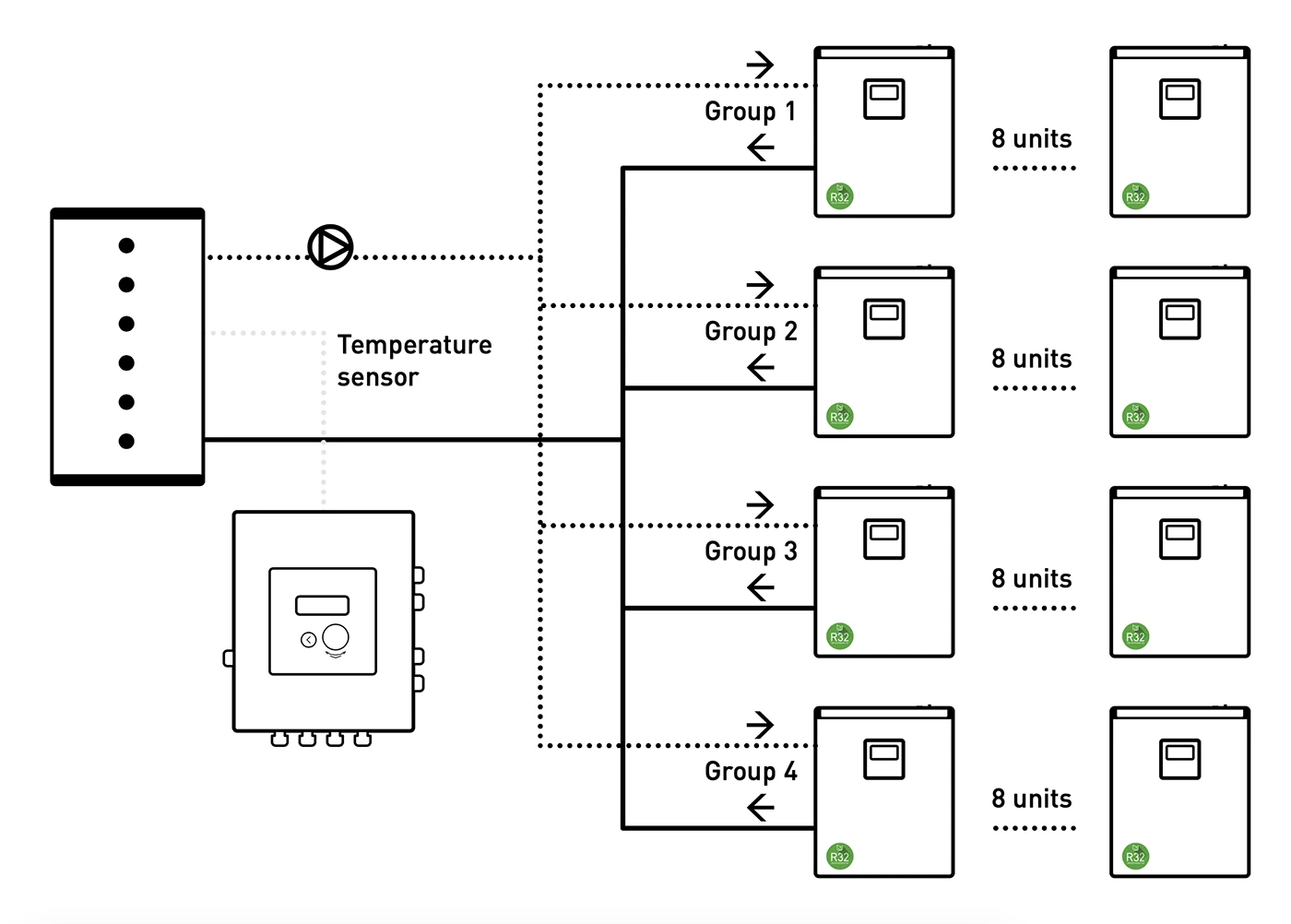

The optional PAW-PACR4 cascade controller allows up to three groups, each group containing 1 to 8 units, to be connected in a cascade for fault replacement or thermal assistance.
- Maximum 4 groups (up to 8 units per group)
- Rotation
- Failure Replacement
- Temperature assistance
- Output traffic signal
- Alarm output signal

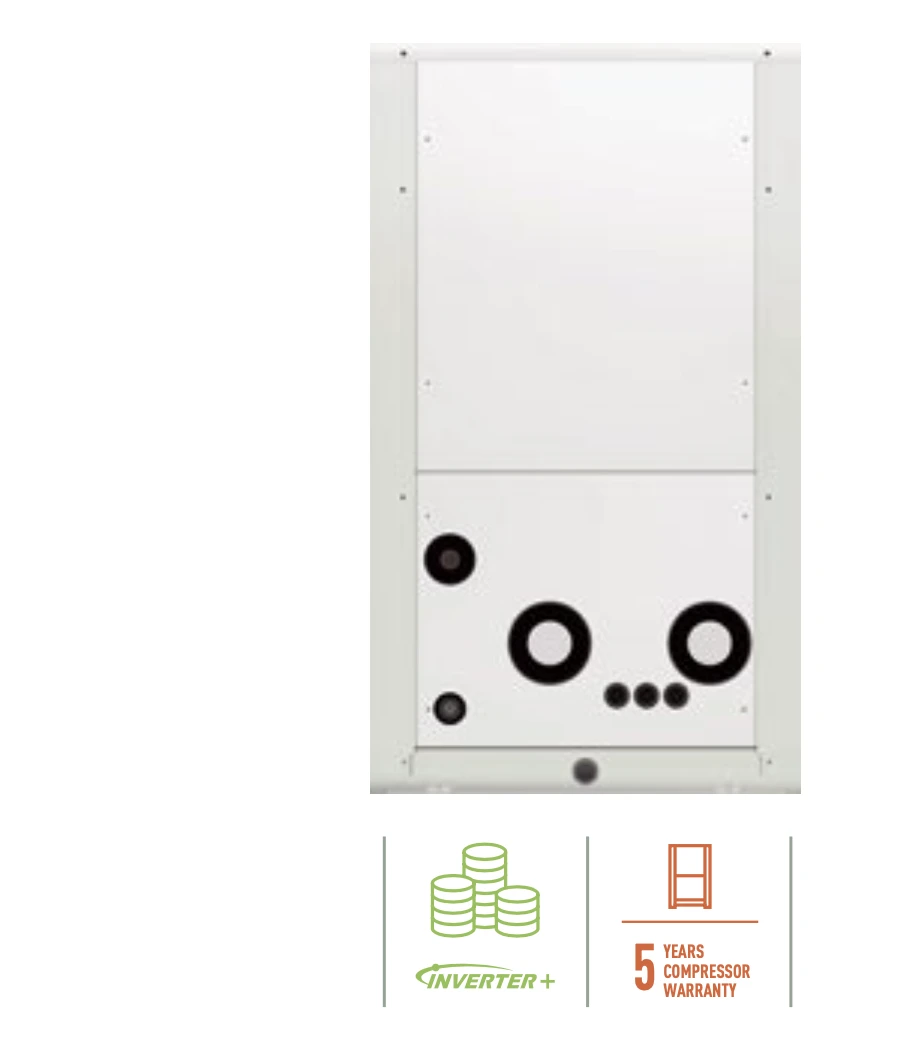

ECOi 2-Pipe with water heat exchanger for chilled and hot water production.
Water heat exchanger (WHE) for hydronic applications.
WHE for ECOi systems controlled by remote control with timer CZ-RTC5B. Energy efficient power control with excellent external static pressure is now ready.
Availability of easy vertical stacking allows installations in limited space (up to 3 units).
Stainless steel plate heat exchanger with anti-freeze control.
Switching between heating and cooling operation.
Technical orientation:
- Heating, cooling and DHW
- Includes Class A water pump (P model only)
- Flexible modularity from 25 kW
- Better part load compared to standard cooling system
- Compatibility with all centralized controllers
- Maximum distance between outdoor unit and WHE: 170 m - Maximum hot water outlet temperature: 45 °C
- Minimum chilled water outlet temperature: 45 °C 5 °C
- Outdoor temperature range in heating mode: -11 °C to +15 °C (with low temperature kit -25 °C*) * Available as spare part.

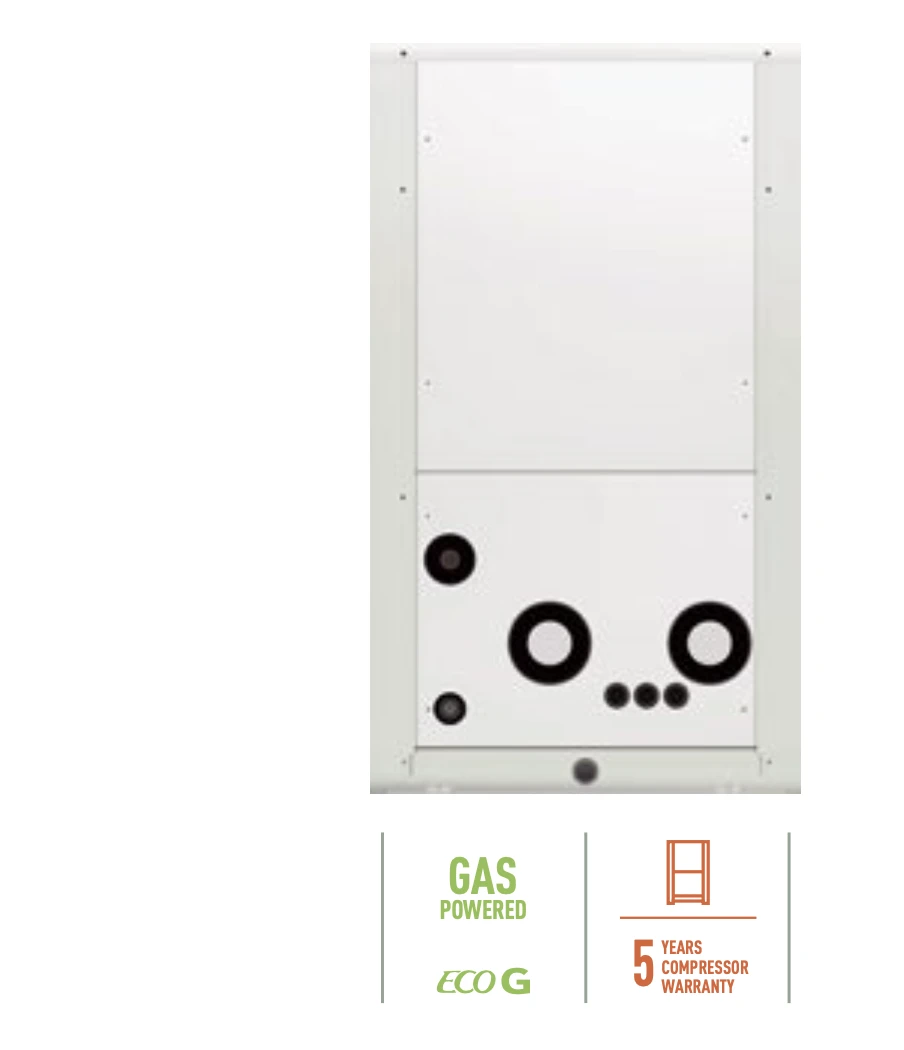

ECO G with water heat exchanger for chilled and hot water production.
Water heat exchanger (WHE) for hydronic applications.
WHE for the ECO G system controlled by the CZ-RTC5B remote time control. Energy-saving power control is now ready.
The availability of simple vertical stacking allows installations in limited space (up to 3 units).
Stainless steel plate heat exchanger with anti-freeze control.
Switching between heating and cooling operation.
Technical orientation:
- Heating, cooling and DHW
- Class A water pump (P model only)
- Installation up to 80 kW
- Free DHW preparation from engine waste heat
- Compatible with all central controllers
- Maximum distance between outdoor unit and WHE: 170 m - Hot water outlet temperature from 35 °C to 55 °C
- Chilled water outlet temperatures from -15 °C to +15 °C - Minimum outdoor temperature in heating mode: -21 °C
