Residential heat pumps
Panasonic
A revolution in design, efficiency, connectivity and sustainability. Aquarea K Generation is a breakthrough low-energy heating, cooling and hot water system that delivers outstanding performance. This model is ideal for new installations and well-insulated homes.
NEW Aquarea High Performance Hydraulic Split All in One L Generation
Single-phase. Heating and cooling - R290
Natural refrigerant R290 with GWP 3. |
|
Energy efficiency: |
A+++ for heating at 35 °C and A+ for DHW / DHW up to 65 °C without heater / Stainless steel DHW tank with U-VacuaTM insulation panel / DHW COP up to 3.60. |
Flexibility: |
Hydraulic connection between indoor and outdoor / Built-in magnetic water filter. |
Comfort: |
Operation without back-up heating at -25 °C / maximum outlet water temperature 75 °C at -10 °C outside temperature / 55 °C hot water even at -25 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Wi-Fi adapter included. |
| Technical Data Sheet | |
NEW Aquarea High Performance Hydraulic Split All in One L Generation
Single-phase. Heating and cooling 2 zones - R290
Natural refrigerant R290 with GWP 3. |
|
Energy efficiency: |
A+++ for heating at 35 °C and A+ for DHW / DHW up to 65 °C without heater / Stainless steel DHW tank with U-VacuaTM insulation panel / DHW COP up to 3.60 |
Flexibility: |
Hydraulic connection between indoor and outdoor / Built-in magnetic water filter / 2 zone control. |
Comfort: |
Operation without back-up heating at -25 °C / maximum outlet water temperature 75 °C at -10 °C outside temperature / 55 °C hot water even at -25 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Wi-Fi adapter included. |
| Technický list | |

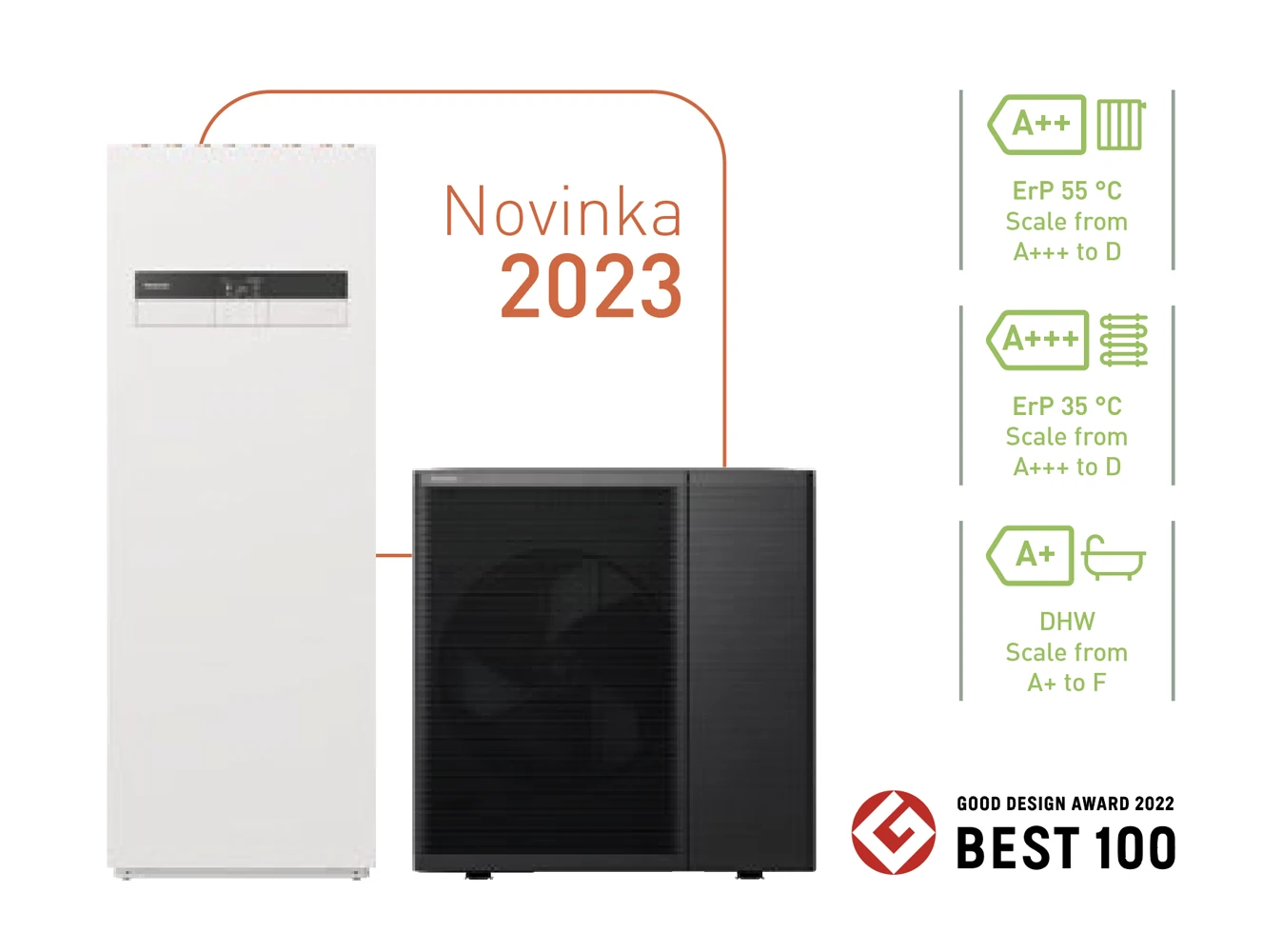

NEW Aquarea High Performance Hydraulic Split All in One L Generation
Single-phase. Heating and cooling with electric anode - R290
Natural refrigerant R290 with GWP 3. |
|
Energy efficiency: |
A+++ for heating at 35 °C and A+ for DHW / DHW up to 65 °C without heater / Stainless steel DHW tank with U-VacuaTM insulation panel / DHW COP up to 3.60. |
Flexibility: |
Hydraulic connection between indoor and outdoor / Built-in magnetic water filter / 2 zone control. |
Comfort: |
Operation without back-up heating at -25 °C / maximum outlet water temperature 75 °C at -10 °C outside temperature / 55 °C hot water even at -25 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Adaptér Wi-Fi je súčasťou balenia. |
| Technical Data Sheet | |

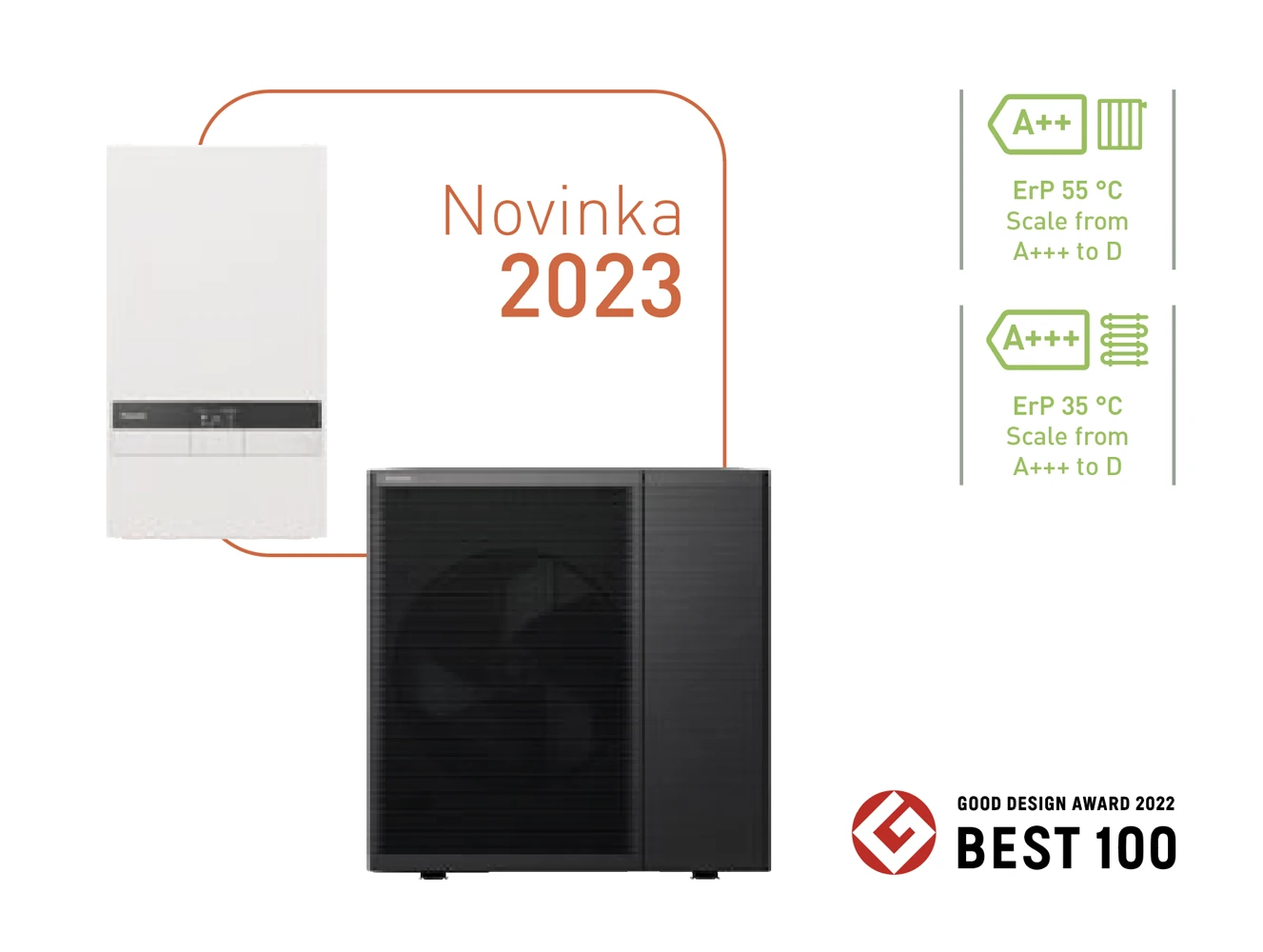

NEW Aquarea High Performance Hydraulic Split Bi-bloc L Generation
Single-phase. Heating and cooling - R290
Natural refrigerant R290 with GWP 3. |
|
Energy efficiency: |
A+++ in heating at 35 °C / Built-in flow meter. |
Flexibility: |
Hydraulic connection between indoor and outdoor / Built-in magnetic water filter / Can be installed in areas with poor water quality. |
Comfort: |
Operation without back-up heating at -25 °C / maximum outlet water temperature 75 °C at -10 °C outside temperature / 55 °C hot water even at -25 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Wi-Fi adapter included. |
| Technical Data Sheet | |

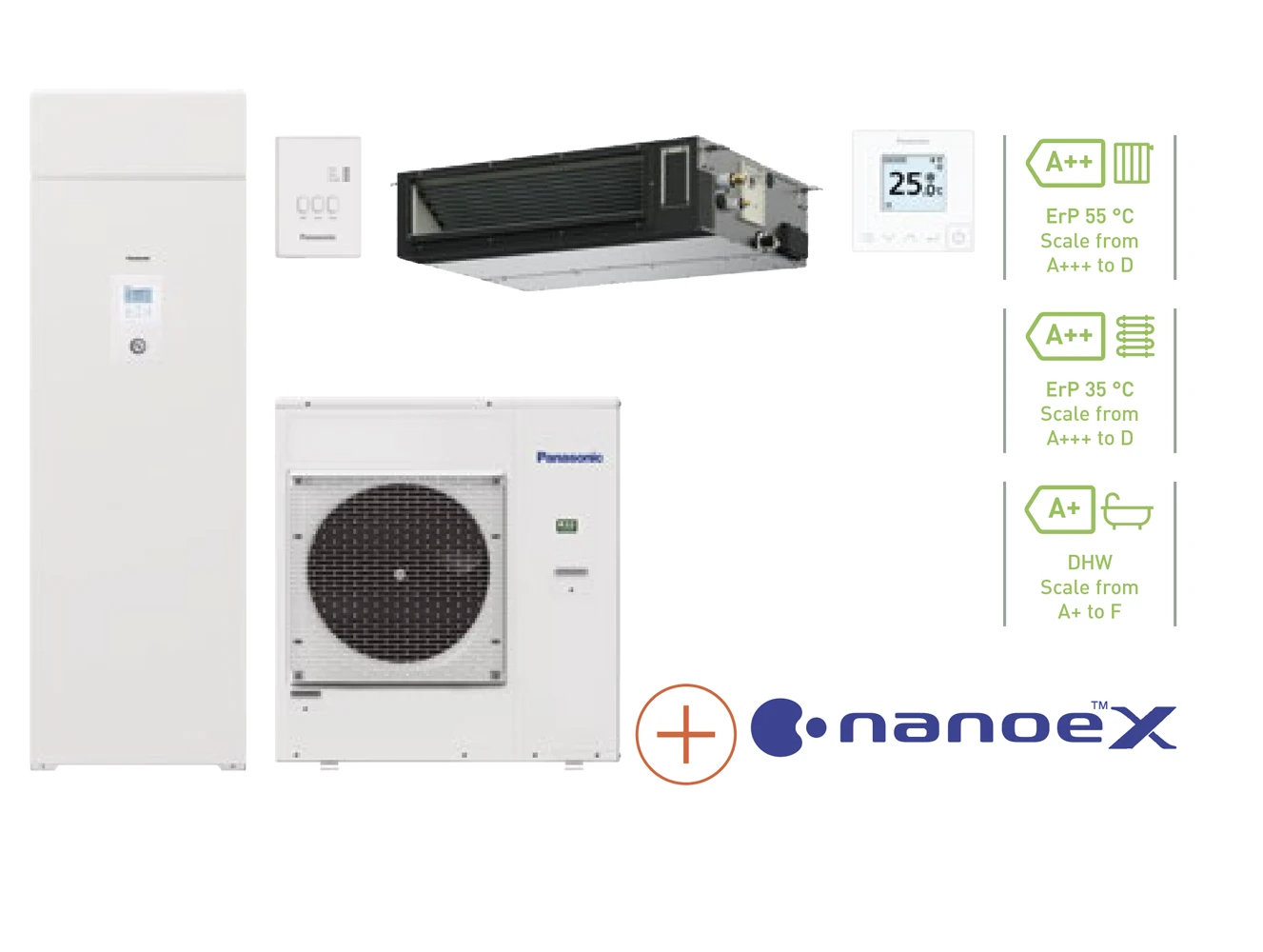

Aquarea EcoFleX. Single phase. Heating and Cooling · R32
Energy efficiency: |
Heat recovery function to reuse waste heat from the outdoor DHW unit. |
Flexibility: |
Small area outdoor unit, tank unit with standard size appliances. |
Comfort: |
Non-stop Heating operation / nanoeTM X technology to improve 24/7 protection (nanoe X Generator Mark 2). |
Connectivity: |
Wi-Fi adapter included via Aquarea Smart Cloud or Panasonic Comfort Cloud. |
| Technical Data Sheet | |
NEW Aquarea High Performance All in One K Generation Single-phase. Heating and cooling - R32
Energy efficiency: |
COP až 5,33 / A+++ for heating at 35 °C and A+ for DHW / "A" variable speed water pump / Stainless steel DHW tank with U-VacuaTM insulation panel / COP for DHW up to 3.50. |
Flexibility: |
Area 598 x 600 / Easy access to hydraulic parts / Built-in magnetic water filter. |
Comfort: |
Operation without back-up heating at -25 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |
NEW Aquarea High Performance All in One K Generation single-phase. Heating and cooling 2 zones - R32
Energy efficiency: |
COP up to 5.33 / A+++ for heating at 35 °C and A+ for DHW heating / "A" variable speed water pump / Stainless steel DHW tank with U-VacuaTM insulation panel / COP for DHW heating up to 3.50. |
Flexibility: |
Area 598 x 600 / Easy access to hydraulic parts / Built-in magnetic water filter / 2-zone control. |
Comfort: |
Operation without back-up heating at -25 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |

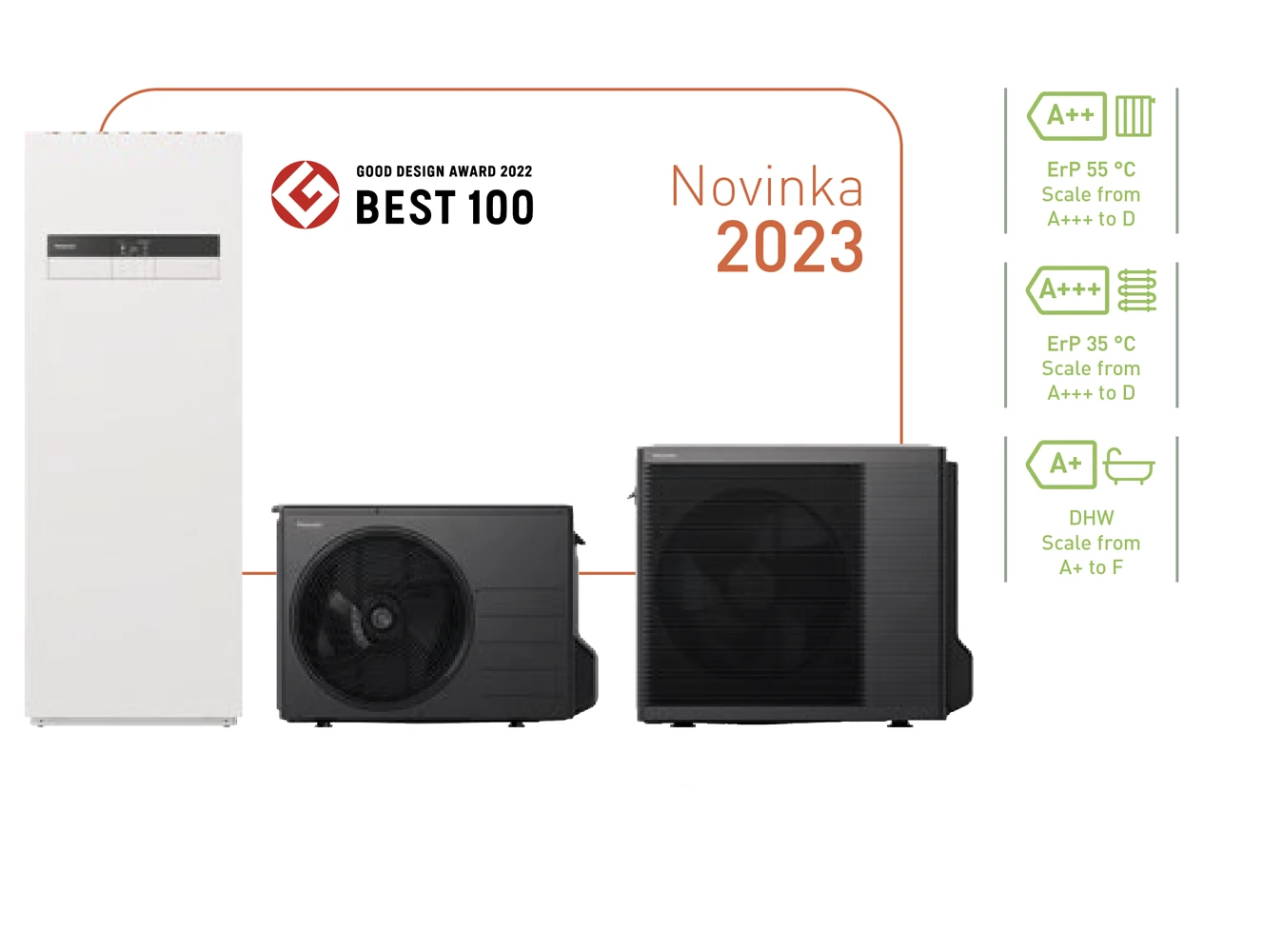

NEW Aquarea High Performance All in One K Generation
Single-phase. Heating and cooling with electric anode - R32
Energy efficiency: |
COP up to 5.33 / A+++ for heating at 35 °C and A+ for DHW heating / "A" variable speed water pump / Stainless steel DHW tank with U-VacuaTM insulation panel / COP for DHW heating up to 3.50. |
Flexibility: |
Area 598 x 600 / Built-in magnetic water filter / Can be installed in areas with unfavourable water quality. |
Comfort: |
Operation without back-up heating at -25 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |
NEW Aquarea High Performance Bi-bloc K Generation
Single-phase. Heating and cooling - SDC - R32
Energy efficiency: |
COP up to 5.33 / A+++ for heating at 35 °C / "A" water pump with speed control / Built-in flow meter. |
Flexibility: |
Long pipes / Built-in magnetic water filter. |
Comfort: |
Operation without back-up heating at -25 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |
NEW Aquarea T-CAP All in One K Generation
Single-phase / three-phase. Heating and cooling - R32
Energy efficiency: |
A+++ for heating at 35 °C and A+ for DHW / "A" variable speed water pump / Stainless steel DHW tank with U-VacuaTM insulation panel / Built-in flow meter. |
Flexibility: |
Area 598 x 600 / Built-in magnetic water filter. |
Comfort: |
Constant output up to -20 °C / Operating range up to -28 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |

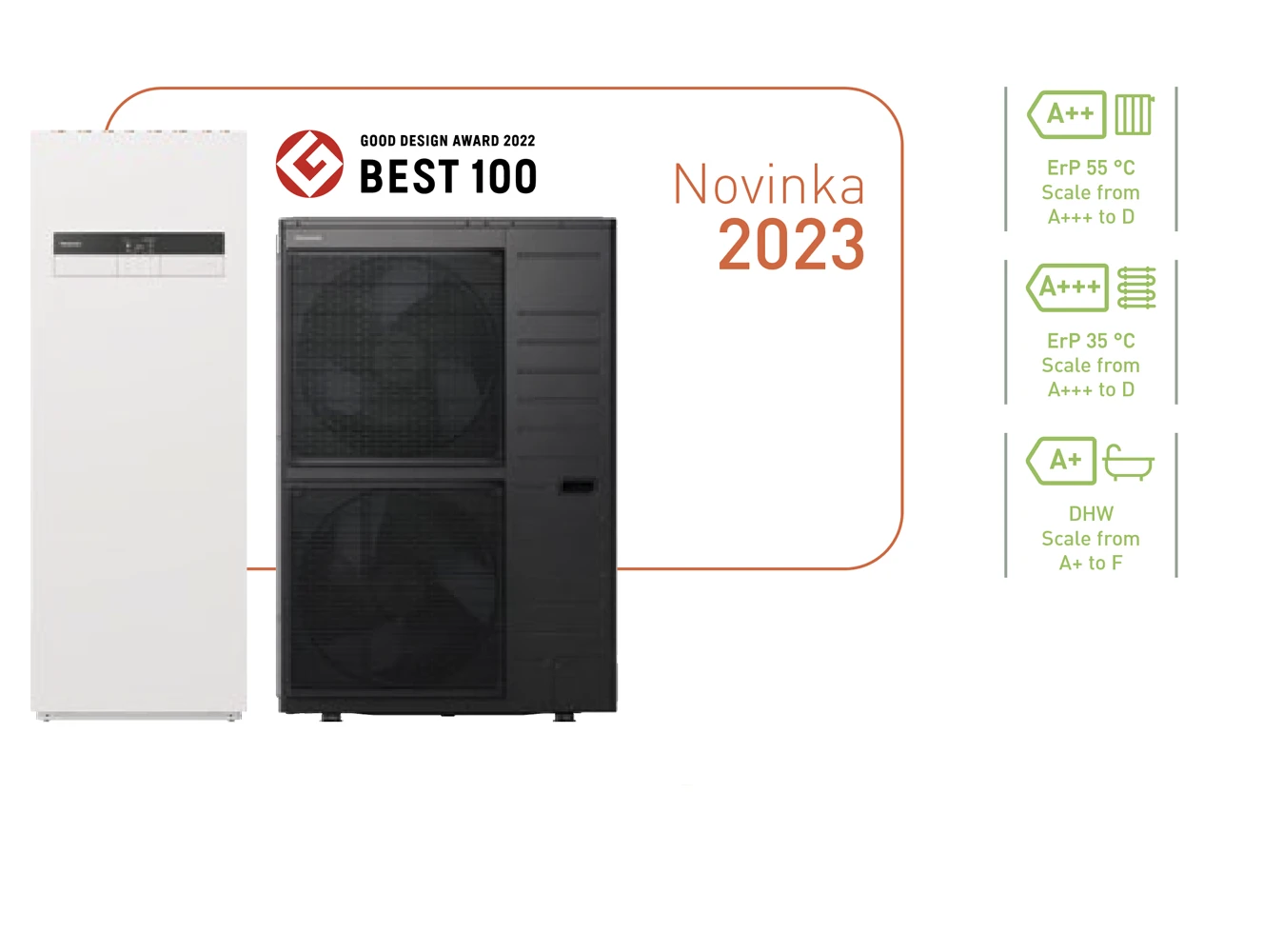

NEW Aquarea T-CAP All in One K Generation Single-phase / three-phase.
Heating and cooling with electric anode - R32
Energy efficiency: |
A+++ for heating at 35 °C and A+ for DHW / "A" variable speed water pump / Stainless steel DHW tank with U-VacuaTM insulation panel / Built-in flow meter. |
Flexibility: |
Area 598 x 600 / Built-in magnetic water filter. |
Comfort: |
Constant output up to -20 °C / Operating range up to -28 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |
NEW Aquarea T-CAP Bi-bloc K Generation Single-phase / three-phase. Heating and cooling - R32
Energy efficiency: |
A+++ for heating at 35 °C and A+ for DHW / "A" variable speed water pump / Built-in flow meter. |
Flexibility: |
Built-in magnetic water filter. |
Comfort: |
Constant output up to -20 °C / Operating range up to -28 °C / 60 °C hot water even at -10 °C outside temperature. |
Control: |
Optimized user interface and enhanced features (2-zone control, bivalent control). |
Connectivity: |
Optional Aquarea Smart and Service Cloud services and integration into BMS projects. |
| Technical Data Sheet | |
